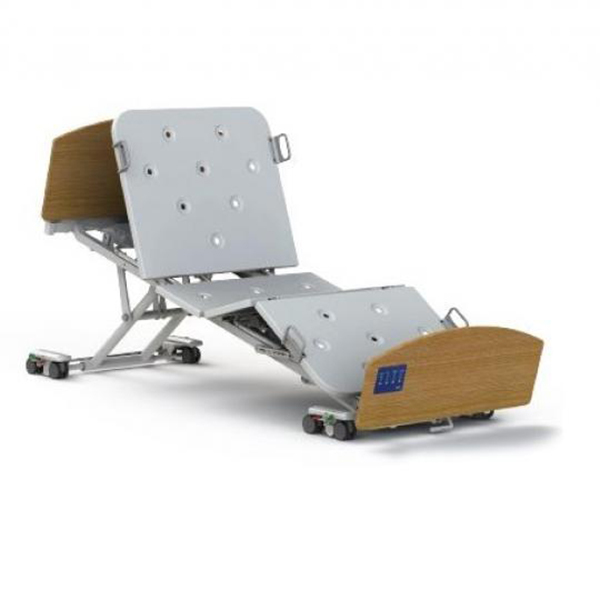

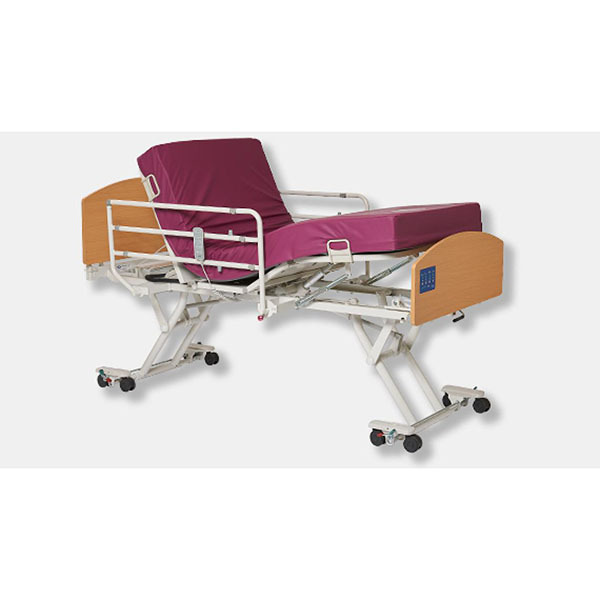

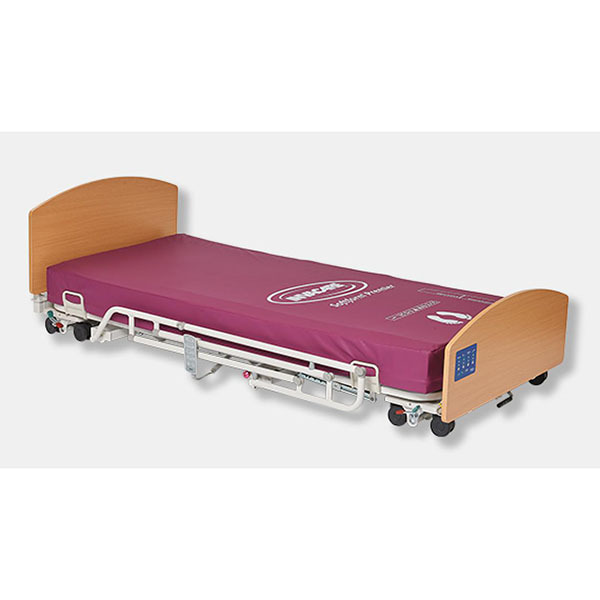

  • The Invacare CS8 bed is an electrically actuated floor line care bed with a range of functions and positional movements that assist caregivers and provide for patient comfort.Ease of
    use, functionality, serviceability and cleaning practicality are key features of the bed.

    The bed has a fabricated steel structure with a powder coated finish. The plastic components are made from urethane, PP, POM, nylon and ABS plastic.
    Clinical Applications and Area of Use:
    The bed is appropriate for adult patient care under supervised medical monitoring and provides support with various positioning options.

    Size Options:

    • Single
    • King Single
  • Features:

    • Total safe working load (SWL) of the bed 250Kg.
    • 75mm twin Tente castors (four braking castors and four free-wheeling).
    • Electrically adjusted height range. The bed works within a height range of 150mm low height to a maximum high height of 680mm.
    • Trendelenberg head and foot down tilt 14°.
    • Four sectioned electronically operated mattress platform with independent adjustment of backrest angle (maximum 65°) and knee section angle (maximum 35°).
    • Four soft contoured mattress retainer handles.
    • Integral foot end mattress base extension. Extends the bed by 195mm.
    • (Optional) bolt on 3⁄4 length folding side rails.
    • Removable timber head and foot panels.
    • One button chair positioning.
    • Under bed lighting.

Basic Dimensions

Overall length  211.0cm
Overall length(base extension extended)  230.5cm
Overall width  92.0cm
Overall width(rails fitted)  100.0cm
Mattress surface length(between panels)  199.5cm
Bed platform height range  15.0cm to 68.0cm
Back rest angle adjustment  0 to 65 degree
Knee bend angle adjustment  0 to 35 degree
Trendelenberg tilt adjustment(head and foot down)  0 to 14 degree















Mattress size

Recommended Mattress size  Width = 86.0cm, Lenght = 198.0cm
Maximum mattress depth(when side rails in use)  17.0cm
Minimum mattress depth(when side rails in use)  10.0cm

Bed weight and safe working load

Without side rails 119kg(approx)
With side rails 138kg(approx)
Safe working load  250kg



  • 10 Years Frame
  • 5 Years Mechanical
  • 3 Years Electrics
